Product details

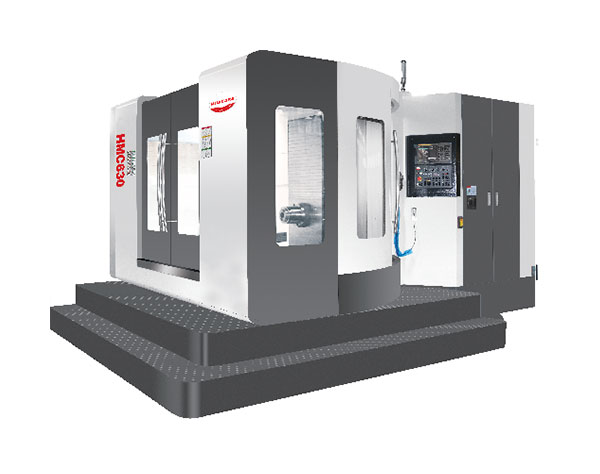

The horizontal machining center has a high speed, high precision and highly reliable structure with high rigidity, high power, high torque and heavy cutting characteristics of similar machines. High-productivity and high-precision machining performance can be fully achieved.
Powerful cutting capabilities combined with superior accuracy and performance make milling and boring operations simple and easy.
The support parts (motor base and bearing seat) of the three-axis feed system are completely machined, which greatly improves the assembly efficiency and quality, and the accuracy retention is greatly improved.
MACHINE TOOL FEATURES
Optional Double Station
C3 LARGE THRUST SCREW
The X and Z-axis use Φ63 ground C3 high precision large thrust screw with groups of imported angular contact bearings, double-side support and pre-stretching to ensure transmission accuracy.
ROBUST WORKTABLE

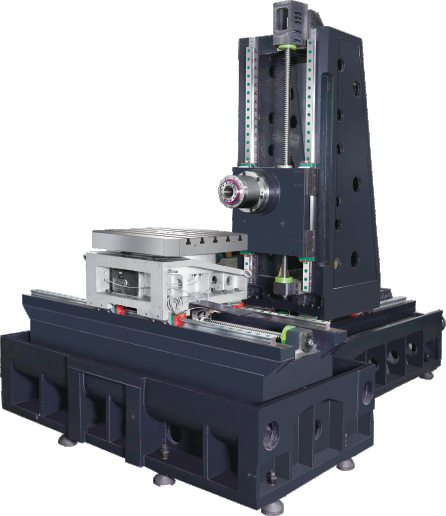

It adopts steady T-bed structure with widened lower slide saddle to improve the rigidity and good stability for rapid movement. The base casting is machined by high precision five-sided gantry, which can complete milling, drilling and tapping of five sides with only one clamping. It reduces the clamping error and improves the machining accuracy.
HIGH POWER SPINDLE
Taiwan high precision spindle is used with standard speed 6,000rpm.
Table bearing: 1200kg
table size: 630 × 630mm
three-axis displacement: 24m/min
spindle speed: 6000rpm,
knife storage capacity: 24pcs
TECHNICAL PARAMETERS OF HORIZONTAL MACHINING CENTER
