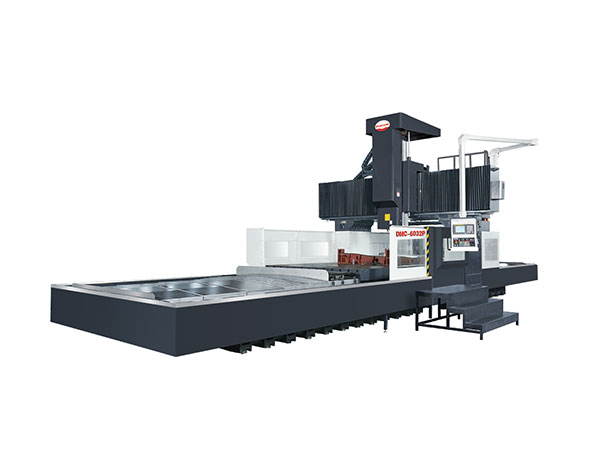

Product details

1.Win the reputation of customers with heavy cutting resistance, stability and precision. Apart from excellent design and construction,  we also use various precision instruments to ensure the product quality.

2.The Z-axis adopts the large T-shaped hard rail, which has good vibration absorption and wear-resistant performance. Traditional  scraping technique is also used to ensure the accuracy for a long time.

3.The new design of the rigid structure shows better accessibility and effective water and chip resistance. A wide range of accessory  heads and a variety of head changers are available to meet different processing requirements.

FULL TOOTH TWO  SPEED TRANSMISSION GEARBOX

1.Cooperating with a full tooth two speed gearbox  (high gear 1:1/low gear 1:4.3), it is directly  transmitted through gears, ensuring smooth  transmission and high efficiency (over 95%).  The shifting of the full tooth gearbox is  controlled by hydraulic pressure, ensuring stable  and reliable shifting.

2.Due to the use of a full  tooth two-stage gearbox for the main  transmission, the low speed torque of the main  shaft is significantly increased (about 4.3 times),  thereby improving the processing efficiency of  users when using larger diameter cutting tools.

Table bearing: 20000kg

table size: 2700 × 6000mm

triaxial stroke: 6000 × 3200 × 1250mm

spindle speed: 6000rpm

knife storage capacity: 24pcs

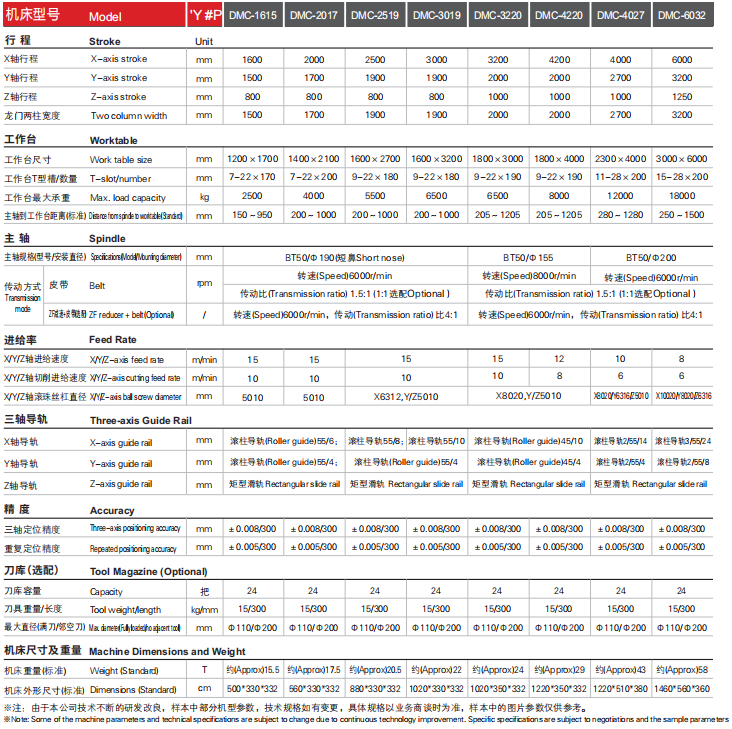

PARAMETERS OF HIGH-PERFORMANCE GANTRY MACHIN ING CENTER

STANDARD CONFIGURATION
